2015-02-15 - TRAFFIC ANALYSIS EXERCISE: SEE IF YOUR INITIAL FINDINGS ARE CORRECT

NOTICE:

• The zip archives on this page have been updated, and they now use the new password scheme.  For the new password, see the "about" page of this website.

PCAP:

• 2015-02-15-traffic-analysis-exercise.pcap.zip   1.3 MB (1,284,313 bytes)



FIRST DECISION POINT - YOU FINISH YOUR ANALYSIS BASED ONLY ON THE PCAP

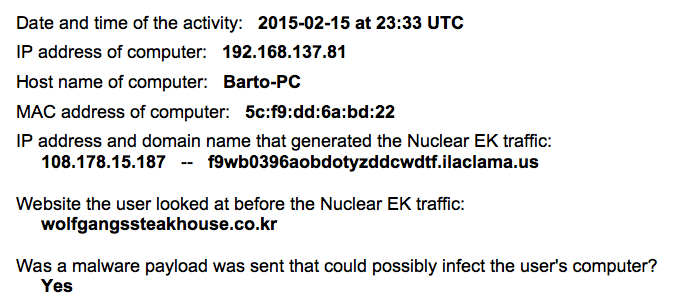

Here's what you should've found when looking at the pcap:

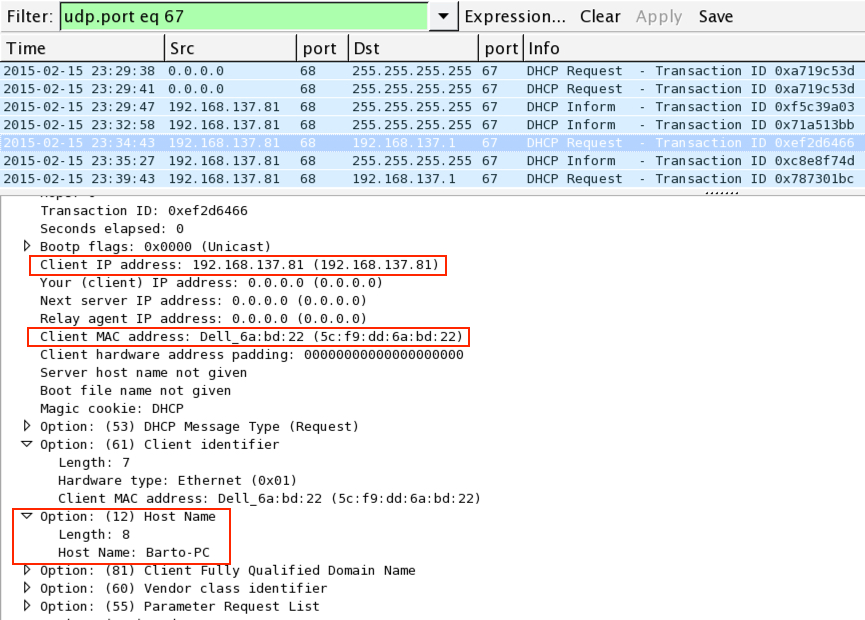

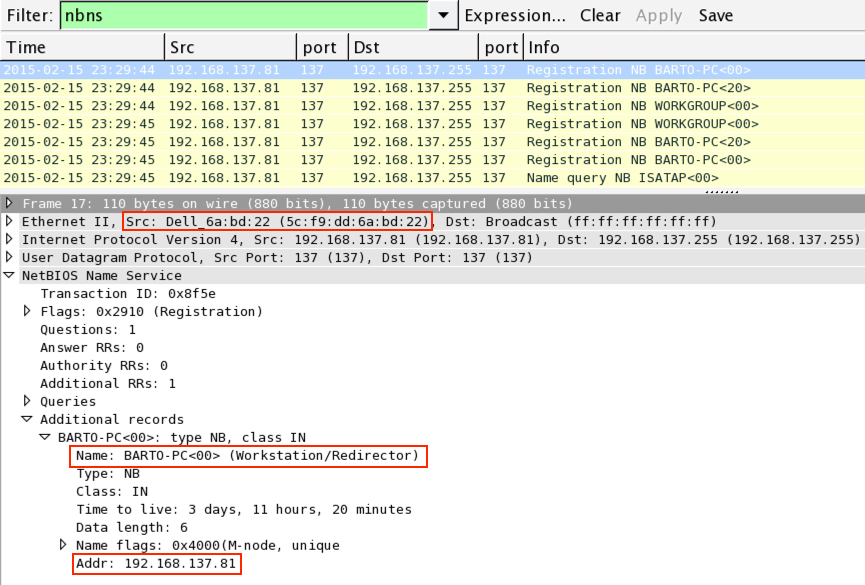

Let's go through this, step-by-step.  First, load the pcap in wireshark.  Hopefully, you've set it up as I've described in my tutorial here.  You can find the host name and mac address for this IP address in the DHCP or NetBIOS name service (NBNS) traffic.  See the images below for details:

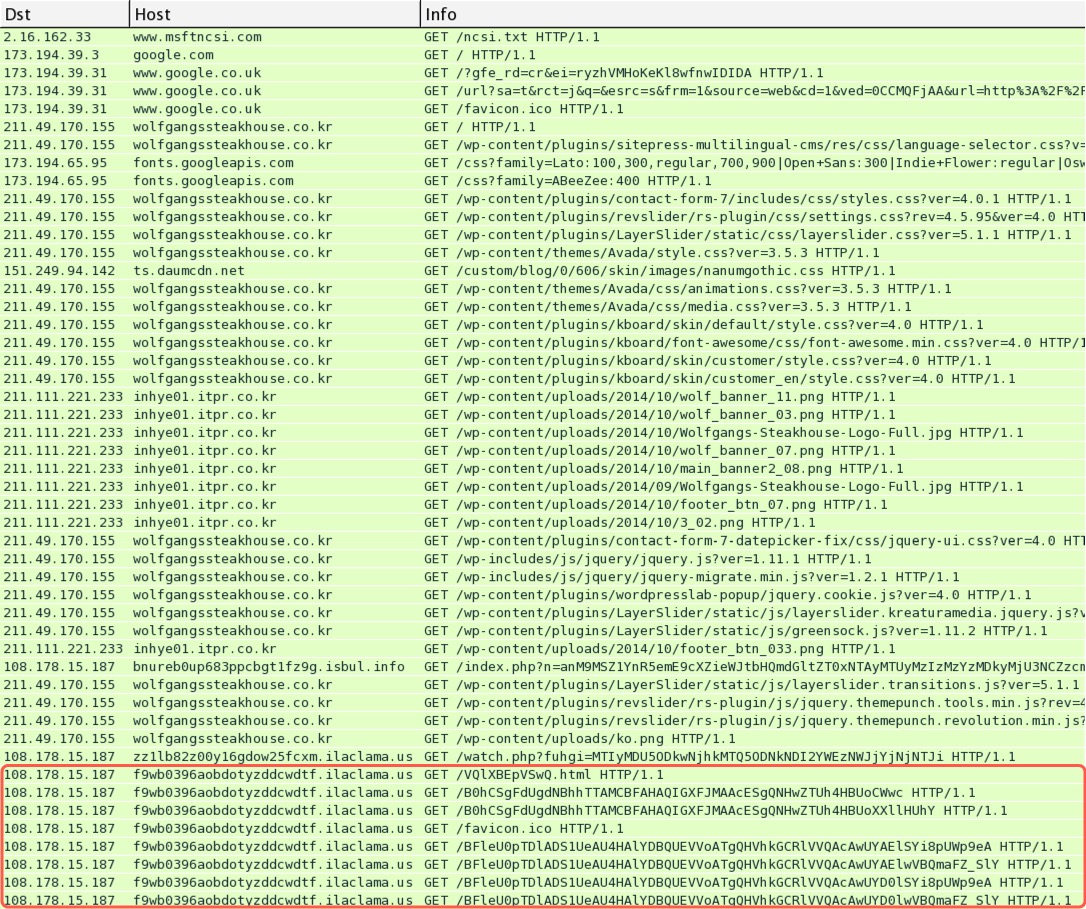

Use http.request for the filter and see the web browsing traffic.  At the botton, you'll find the last few HTTP GET requests for Nuclear EK.



The exploit kit should send files in the following sequence:

• Landing page
• Exploit (Flash, Java, Silverlight, etc)
• Malware payload after the exploit was successful

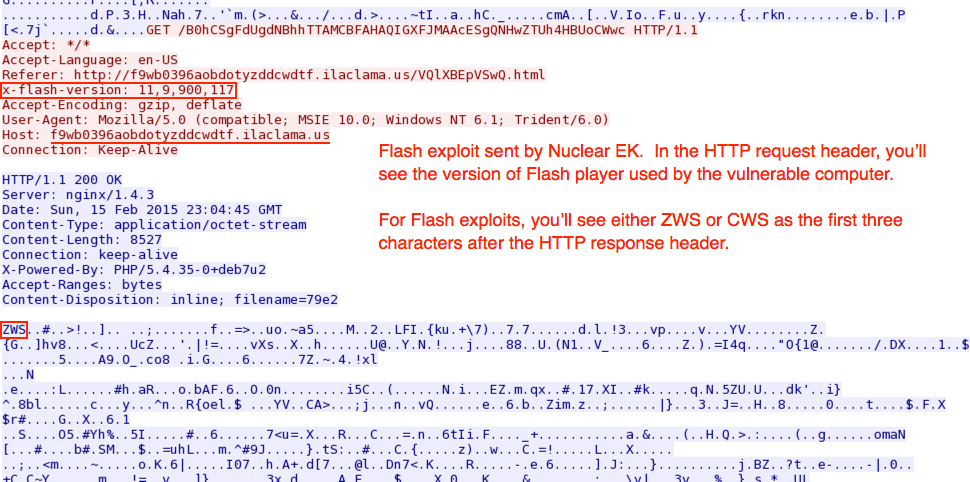

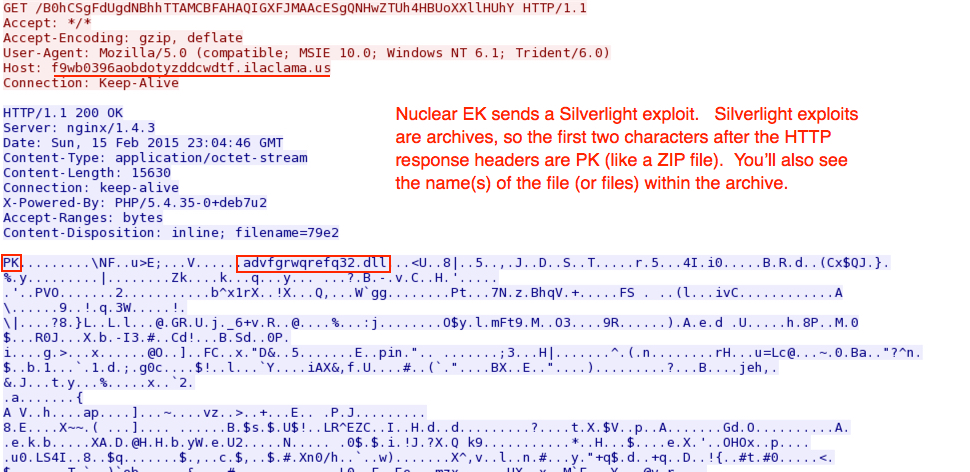

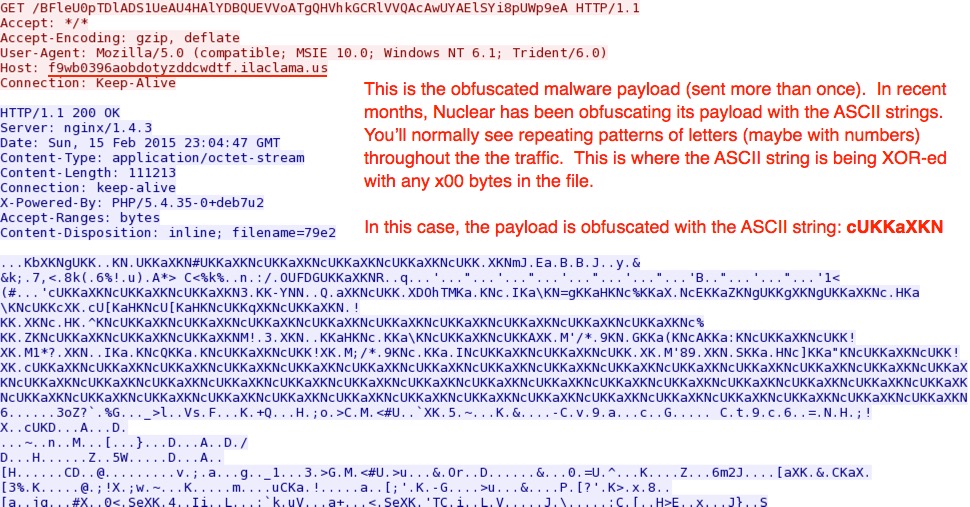

In most exploit kits, including Nuclear, these are all sent from same IP address and domain.  Here are highlights from the pcap, so you can see if the malware payload was delivered.



FIRST DECISION POINT - ALTERNATE CHOICE

You want to know what alerts triggered and include them in your report.  What exactly was that malware payload?  With a determined look on your face, you investigate further.  (Careful...  Your face might settle into that look permanently.)  The other analysts are still reviewing events, and someone will notify you if anything else unusual happens.

• Click here to find out more about your Nuclear EK activity.



FINAL NOTES IF YOU CHOSE TO STOP HERE

• You've determined wether or not the malware as delivered, and you initiated procedures to take care of the situation.  From an incident response perspective, that's all you need.

• You've got other snort events to investigate.  No other infected computers will escape notice--not on your watch!  Spend too much time on one incident, and you might miss something even more important.



Click here to exit this exercise and return to the main page.
